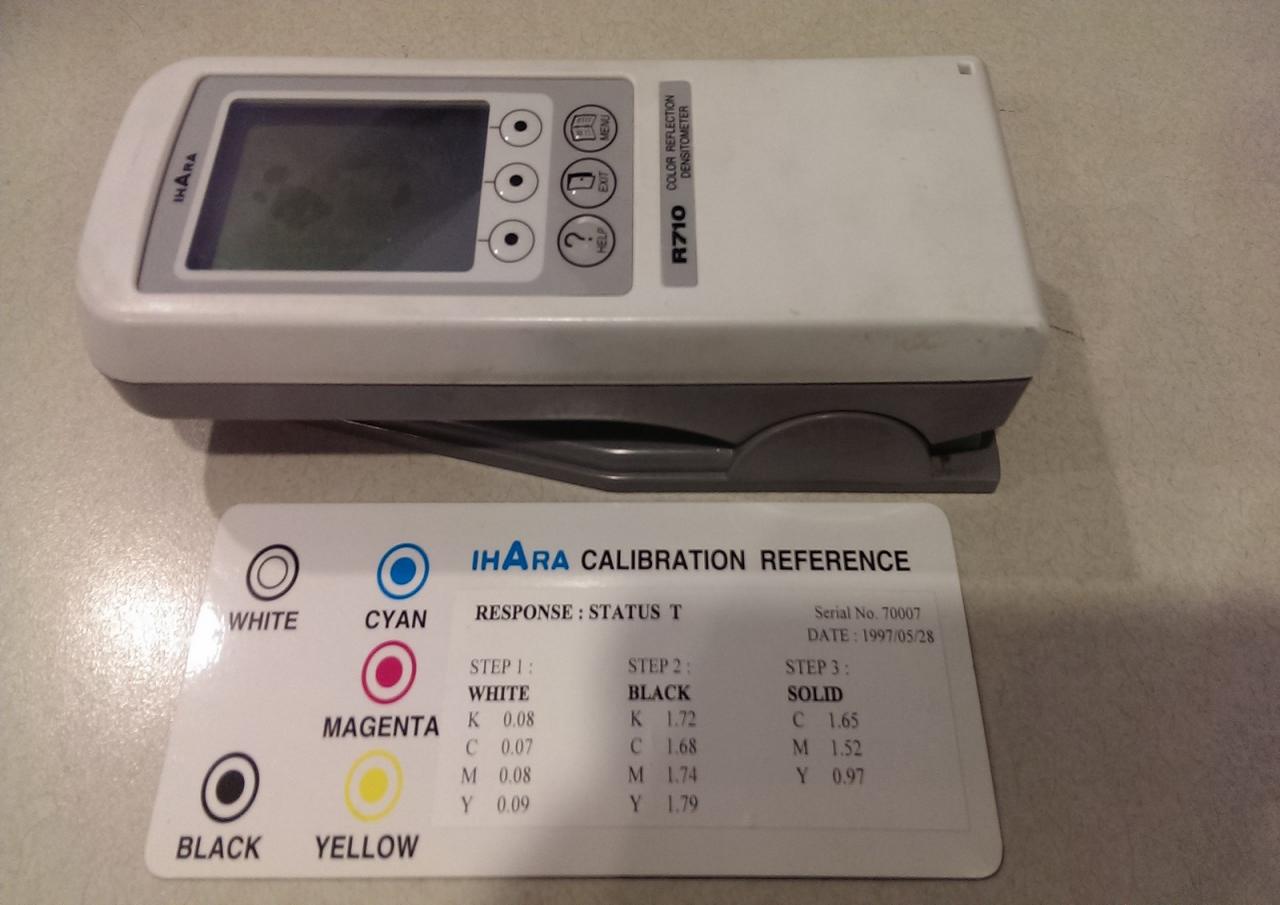

Ihara R710 Densitometer
Serial Number: 070129
HIGH PERFORMANCE & RELIABILITY
Ihara Electronic Industries utilizes advanced microcomputer technology to ensure superior performance and reliability for its entire line of densitometric products. Standard functions include (R710): Density and density difference.
MENU DRIVEN COMMANDS
Simply select the functions desired. No memorization or operation manual required.
SELF-GUIDING PROMPTS
Clear and concise instructions are prompted across the large graphic LCD display in every measurement.
HELP KEY PROVIDES EXPLANATION OF KEY FUNCTIONS
Detailed explanations are available for all measurement functions along with answers to frequently asked questions.
UPGRADEABLE DESIGN
To increase measurement functions upgrade to the model R720 or R730.
QUICK CALIBRATION
It takes seconds to calibrate using the quick calibration function. Standard calibration is also available.
LARGE GRAPHIC LCD DISPLAY
The easy to read graphic LCD display allows the user to determine the precise configuration desired,including right or left handed view,two or three decimal precision and display options.
PRINTER AND COMPUTER INTERFACE
The configurable RS-232C serial interface is capable of linking the R710 to a computer or to the IHARA PR-95 printer.
SECURITY USER CODE (OPTIONAL)
As an option to safeguard your investment, the R710 may be set to operate only with the correct user code.
SPECIFICATIONS:
MEASUREMENT FUNCTIONS: Density & Density Difference
FILTER RESPONSE: Status T, Status E, Status A
MEASURING GEOMETRY: 0/45 degrees (ANSI PH2.17, ISO 5/4, DIN 16536)
MEASURING RANGE: Density 0.00D - 2.50D
REPEATABILITY: +/-0.01D
ACCURACY: +/-0.02D
LIGHT SOURCE: Halogen Lamp, Approximately 2856 degrees K
APERTURE DIAMETER: 3.0mm (1.7mm optional)
DETECTOR: GaAsP Photodiode
DISPLAY 128 x 64 Dot Graphic LCD
POWER SUPPLY: Ni-Cad (4.8V), 800mAh
RECHARGE TIME: Approximately 1.5 hours
MEASUREMENTS PER CHARGE: Approximately 4,000 (Internal Testing)
WARM UP TIME: None
MEASURING TIME: Approximately 1 second
OPERATING TEMPERATURE RANGE: 41 - 104 degrees F (5 - 40 degrees C)
POLARIZATION FILTER: (Optional)
SECURITY USER CODE: (Optional)
DIMENSIONS: 2 3/4"W x 2"H x 8 1/4" L (72mm x 50mm x 210mm)
WEIGHT: 1.2 lbs.(530g) With Batteries
COMPUTER OUTPUT: Configurable RS-232C Serial Interface
INCLUDES:
Operation Manual
Calibration Standard
AC Adapter (9V, 500mA, center-negative)
Carrying Case
Condition: Good, Tested and Calibrated. In working order.
